AIR M 140

The stun gun AIR «M-140» is intended to generate electric pulses providing protection from delinquents due to non-lethal impact by series of short electric discharges of high voltage current.

AIR «M-140» is effective both in shooting or contact modes.

AIR «M-140» is used in a remote mode with a cartridge «UTED» (type 01) to aim a target at the distance up to 6 meters (by request up to 6.5).
Great accuracy in firing (shooting with angle 0,5°).
10 cm between probes is maximum. Easy to get even a moving target.

Features:

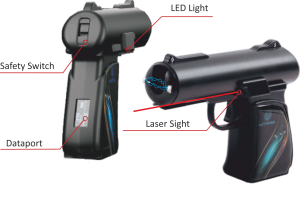

• Integrated laser sight and LED light used for target acquisition;
• Dataport: power and time indicator; stores time and date of firing;
• Demountable rechargeable Li-Pol accumulator (the charger in a set).

ModelColorPower SourceLabel color
AIR «M-140»BlackLi-PolBlue
SpecificationsFeatures
1. Output specifications’ 2

• Wave form: monopolar pulse.
• Pulse duration: 45+60 ps.
• Pulse rate: 170:—200 Hz.
• Peak loaded voltage: 1700+2500 V.
• Energy per pulse: 42 mJoule.
• Power rating delivered into load: 7+10 Watts.

2. Temperature range: Li-Pol cells: -15°C to SOO C

3. Relative humidity: up to 98%

4. Power source: demountable Li-Pol accumulator.

5. Housing: High impact polymer.

6. Cartridge available up to a maximum range of 4.5 m. The average accuracy in shooting consists 5+10 cm between probes.

7. Patent: Russia 2156940 and others.

1. Integrated laser sight and LED light (used for target acquisition).

2. Capable of drive-stun with worked out cartridge or without a cartridge installed.

3. Dataport: integrated charge level LED power indicator, time; stores date and time of firing.

4. Electrical charge can penetrate up to 3,5 cm cumulative of clothing or 2,5 cm per probe.

5. Warranty: 1 years standard with extended warranties available.4

6. Fully charged battery provides not less than 150 firings.

7. For Li-Pol cells a charger is available.

8. Compatible with all MARCH GROUP cartridges.

Physical Characteristics
Dimensions without cartridge5
Lenght (L)Height (H)Width (W)Weight
15413 mm11412 mm4211 mm250+30 g



  1. Output specifications may vary depending on temperature, battery charge, and load characteristics.
  2. Output specifications derived from 1000 Q (ohms) resistive load measurements.
  3. Cartridge is current-conducting, there is no need to put it off after shooting for drive-stun impact.
    Use of cartridge not authorized by March Group will void the product warranty.
    ‹Additional terms and conditions may apply.
  4. Dimensions, weight and specifications are for reference only.
