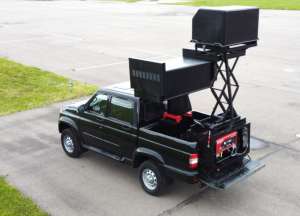

REPELLENT-PATROL
Complex for radio surveillance and generating counteraction signals against small-sized UAVs
| Basic specifications | |
| Suppression range of UAVs control channels, not less, km | |
| aircraft type | 20 |
| quadrocopter type | 3 |
| Suppression range of UAVs satellite navigation channels, km | |
| aircraft type | 20 |
| quadrocopter type | 4 |

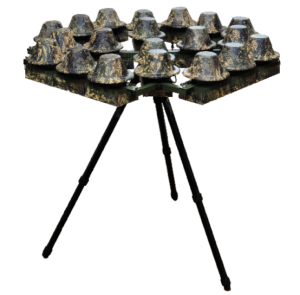

KUPOL Complex of radio electronic counteraction to UAVs
The KUPOL affects UAVs navigation and control channels in order to prevent its functioning in the airspace. The suppression range of UAVs control and navigation channels is at least 2,7 km
| Basic specifications | |
| Operating frequency ranges of the complex | Navigation and control channels: |
| GLONASS, GPS, Galileo, BeiDou | |
| 420 – 450 MHz | |
| 850 – 960 MHz | |
| 1164 – 1214 MHz | |
| 1165 – 1250 MHz | |
| 1544 – 1610 MHz | |
| 1570 – 1620 MHz | |
| 2400 – 2485 MHz | |
| 5720 – 5850 MHz | |
PISCHAL-PRO Portable anti-UAV complex
The complex generates the radio signal in the conditions of manual targeting in order to disrupt the mission design
| Basic specifications | |
| Frequency ranges of jamming | Navigation and control channels: GLONASS, GPS, Galileo, BeiDou, 420-450 MHz, 860-930 MHz, 1.57-1.62 GHz, 2.4-2.485 GHz, 5.72-5.86 GHz |
| Suppression range: Navigation channels Control channels | No less than 2500 m No less than 2000 m |
| Battery life | At least 2 hours (built-in and additional batteries) |
| Overall dimensions (WxHxL) | 200 x 240 x 930 mm |
| Weight without the packaging and tripod | No more than 3.5 kg |
