CELTIUM Ballistic shield

CELTIUM Ballistic shield

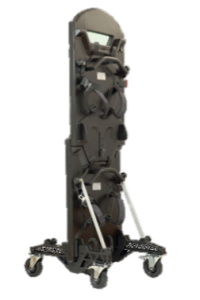

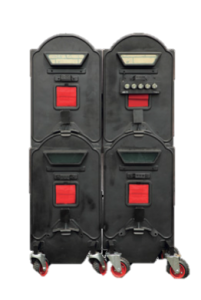

The Celtium ballistic shield is designed for special operations. It is outfitted with a visor with reinforced glass. The shield construction allows not only to protect a single user but also to create of several ballistic shields a mobile armored obstacle on the wheeled base. This type of ballistic shield provides for maximum protection.

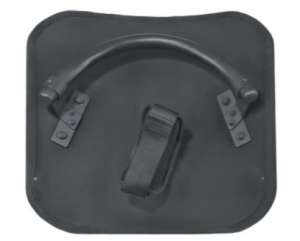

BAKLER-K-L Bulletproof shield

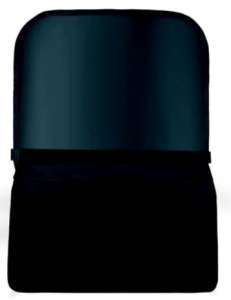

Bakler-K-L is a ceramic composite Br 5 protection grade concise bulletproof shield equipped with a removable Br 2 protective pad. The internal side of the shield is equipped with a handle used during combat and a hook to connect the shield with a harness system. Bakler-K-L can be equipped with a Br 2 short bullet-proof pad.

Basic specifications
Weight, kg:
shield13
protective pad2.7
short bulletproof pad1.6
Protection area, dm2:
shield (panel)22
protective pad22
short bulletproof pad10

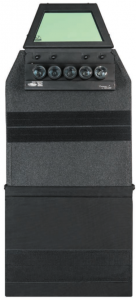

BAKLER-K-R (Downsized) bulletproof shield

The Bakler-K-R (downsized) is a ceramic composite Br 5 protection grade mobile bullet-proof shield. The shield has a unique configuration allowing for the bullet-proof pad dimensions and protection grade adjustment.

The removable bulletproof pad is Br 5 when unmounted. When mounted, the pad protection area doubles in size with the Br protection grade lowered to 2.

A standard Bakler-K-R delivery set includes two removable Br 2/Br 4 armour glass screens that can be changed depending on the combat task at hand.

Should the necessity arise, the shield can be equipped with a light.

Basic specifications
Weight, kg:
shield12
protective pad6.9
Br 2 armour glass1.9
Br 4 armour glass3.9
Protection area, dm2:
shield (panel)53
protective pad unmounted11.8
protective pad mounted23.6
armour glass1.8

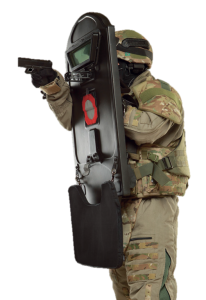

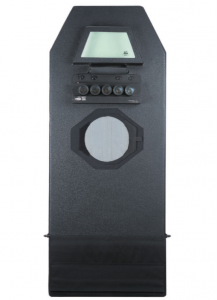

BAKLER-K-R (Full height) bulletproof shield

Bakler-K-R (full-height) is a ceramic composite assault bullet-proof shield that has Br 5 protection grade over the whole bullet-proof armour panel. The shield has a large protection area covering the shield bearer completely.

Bakler-K-R has a Br 5 bulletproof armour screen and a removable Br 2 bulletproof pad.

The bullet-proof armour panel exterior has a shield light fastening and a transportation safety lever. A light-reflecting circle immediately attracts the attackers’ attention to the brightest dot on the shield so that they would deliver fire to the centre of the armour panel. The panel internal side is equipped with a handle used during combat and a hook to connect the shield with a harness system which is included in a standard delivery set.

Basic specifications
Weight, kg:
shield29
protective pad5
harness system1.6
Protection area, dm2:
shield (panel)53
protective pad33
armour glass1.9
